The Metalfex adds a mobile non-ferrous metal separator to the Komptech line. Designed for conveyor feed, the Metalfex has its own intake conveyor and an overhead ferrous separator upstream of non-ferrous separation. It removes non-ferrous metals using an eddy current separator with eccentric pole system, discharging the metals and the cleaned fraction by two folding conveyors to the left and right of the machine.

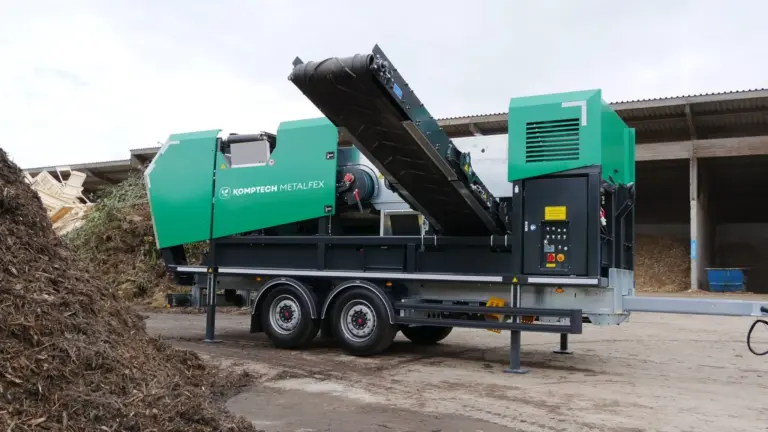

All components are electrically powered, from the on-board diesel generator or from grid current. The Metalfex is available as a compact hook lift version and as an easily maneuverable two-axle trailer.
Wide application range

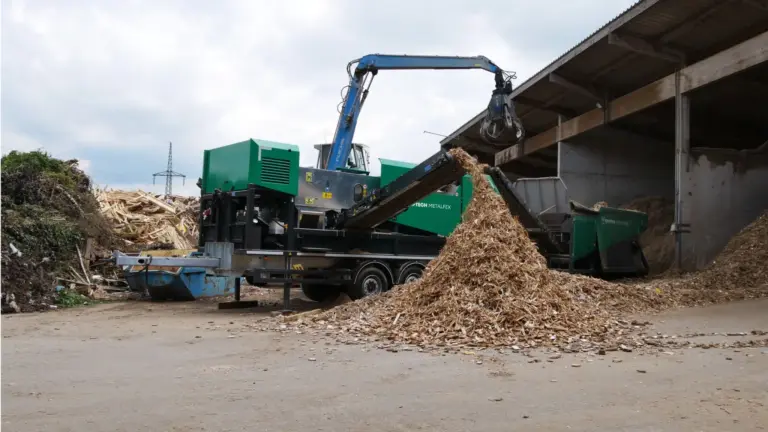

The Metalfex can be used with shredded waste wood and bulk waste, industrial and commercial waste, household waste, mixed construction waste and shredder output. With its tough, powerful design, it can take input grain sizes up to 300 mm in an extremely wide range of materials.
Ferrous separation included
A neodymium overbelt magnet over the intake conveyor to the non-ferrous separator conveyor gives effective removal of all ferrous parts, which can be chuted to the left or right as desired
Precisely adjustable
Non-ferrous separation is by an eddy current separator with eccentric pole system. The adjustable separating vertex allows it to be set precisely for the material at hand. The NF separator unit working width is 1.95 m.
Comfortable discharge
The non-ferrous metals and cleaned fraction are output on two folding conveyors to the right and left of the machine. The 0.8 m wide belts can reach discharge heights of 2.3 to 3.15 metres, depending on the machine configuration.
Maintenance made easy
Large access doors on both sides grant easy access to all maintenance points. Even a belt change of the NF separator is easy.
