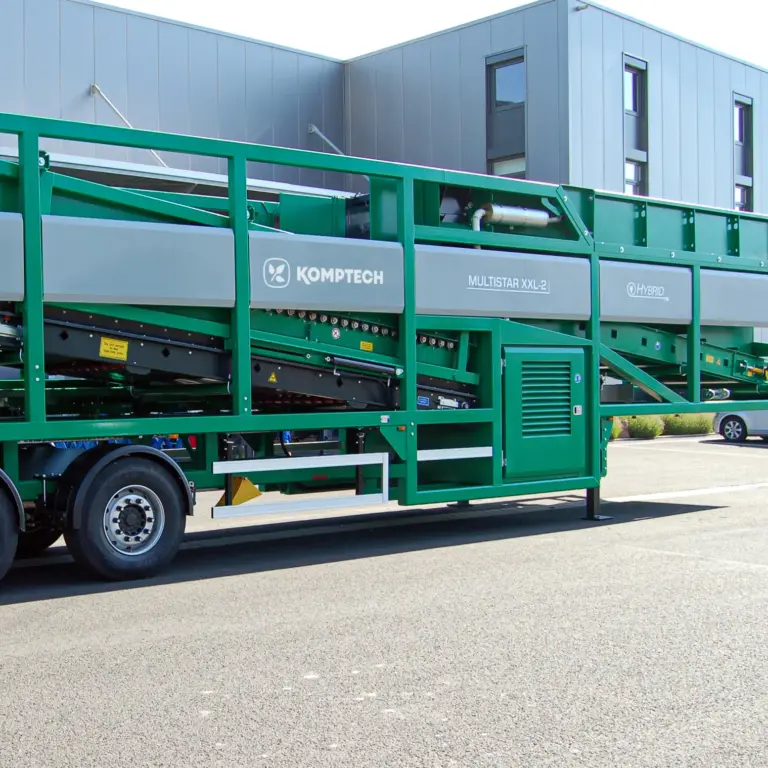

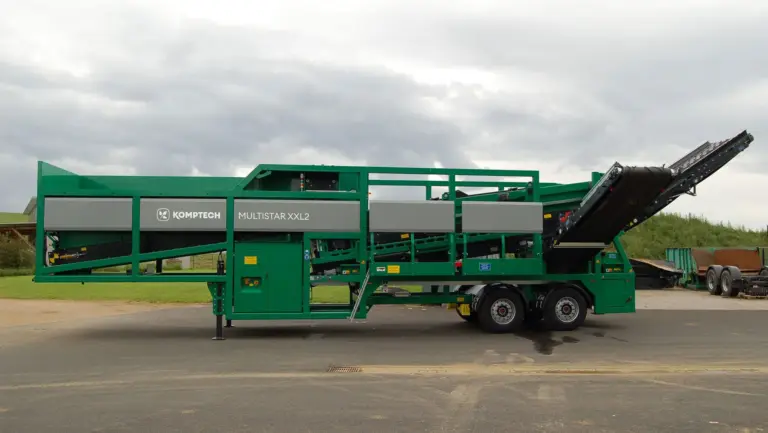

The Multistar XXL2 is designed as a pure 2-fraction star screen and gives high performance, with up to 500 m³/h throughput. The XXL2 is a promising alternative to drum screens in situations where separation into three fractions is not strictly necessary, for example compost screening and bark processing.
The Multistar XXL2 offers unparalleled flexibility through the simple adjustability of the screen cut, and low energy consumption through all-electric drive (using electricity from generator or grid).
Powerful and flexible
The large hopper and the extremely wide and long screen deck are aligned in order to enable a throughput up to 500 m/h. A quick change system allows a change of the complete screen deck in under an hour.
From fine to coarse
Particle size can be controlled by varying the rotation speed of the star shafts. The particle size in the bandwidth specified by the star geometry can be changed within seconds by the control panel. A screen section from 8-150 mm is covered due to different types and arrangement of the stars.
Continuous cleaning
The screen units are continually cleaned by the most simplest and efficient patented CLEANSTAR cleaning system. Each star has a wear-resistant cleaning element that clears the screen gap to the surrounding stars on each rotation. So screening is always in season with Multistar star screens.
Full mobilility
Although performance of the XXL2 is in the range of a stationary machine, the semi-trailer design makes them easy to move from point A to point B. So nothing stands in the way of off-site use. Extend the supports, fold out the conveyors, and you’re ready to run.
